SERVICEs
Capability
At MPS we are continually investing in the latest technology to expand our capabilities and offer the best solutions for our clients needs. Our range of processing equipment offers a one stop shop for profile cutting, press brake folding and beamline processing.
TOOLS
Cutting Tools / Machines
LASER
Amada FOM2RI
3015 4KW Laser Cutter
Our laser cutting capability is powered by a 4KW Amada laser cutter, featuring a bed size of 3m x 1.5m. The resulting profiles showcase exceptional accuracy and boast superb edge quality, ensuring the highest standards for our customers’ projects.
Amada 3015 Laser Maximum Sheet Thickness
- Power
- Max Sheet Size
- Carbon Steel
- Aluminium
- Stainless Steel
- Electrogalv and Galv Panel
- 4,000 W
- 3m x 1.5m
- up to 16mm (up to 20mm on request)
- up to 8mm
- up to 16mm
- up to 3mm
PLASMA
Plazmax CutAce XL8025
With Hypertherm XPR300
Our plasma cutting capability is truly exceptional, thanks to our advanced equipment. We utilise the Plazmax CutAce XL with a 52-degree beveling head and the Hypertherm XPR300 power source. With a bed size of 8.3m x 2.7m, we have the capacity to handle large-scale projects efficiently. Whether it’s mild steel, stainless steel, or aluminum, our machine consistently delivers outstanding cut quality across a wide range of thicknesses. Trust us to provide precise and high-quality plasma cutting solutions for your needs.
Plazmax Plasma Cutter Maximum Sheet Thickness
- Power
- Max Sheet Size
- Carbon Steel
- Aluminium
- Stainless Steel
- 300 A
- 8m x 2.5m
- Pierce capacity 50mm; Severance capacity 80mm
- Pierce capacity 38mm; Severance capacity 50mm
- Pierce capacity 38mm; Severance capacity 75mm
WATERJET
OMAX 120X
Large Format Waterjet Cutter
Omax Waterjet Maximum Sheet Thickness
- Power
- Max Sheet Size
- Carbon Steel
- Aluminium
- Stainless Steel
- 55,000 PSI
- 6m x 3m
- up to 150mm
- up to 250mm
- up to 150mm
- Special Steels
- Glass
- Timber
- Plastics
- Misc
- Talk to Us
- Talk to Us
- Talk to Us
- Talk to Us
- Talk to Us
CNC FOLDING
Amada Press Brake
HG1303 with AMNC 3i
Our Amada Press Brake offers speed and accuracy with unprecedented ease of use. With offline programming capability we can manage complex one-off folds and get them right the first time. Large batches are also a breeze with superb accuracy and repeatability.
Amada HG1303 folding capability
- Press Force
- Max. Fold Length
- Tooling & Capacity
- 130 Ton
- 3m
-
We hold a large range of tooling for varying materials, thicknesses and bending requirements. Talk to us and we will find the right solution for your needs.
CNC FOLDING
Baykal Press Brake
APHS 41300
With 300 ton folding capacity over a 4m length our Baykal press brake is ideally suited to larger jobs without compromising on the quality of output. From stainless treadplate platforms to 16mm thick G300 bump folded guide plates this machine is our trusty workhorse when it comes to heavy duty folding.
Baykal APHS 41300 folding capability
- Press Force
- Max. fold length
- Tooling and Capacity
- 300 ton
- 4m
- We hold a large range of tooling for varying materials, thicknesses and bending requirements. Talk to us and we will find the right solution for your needs.

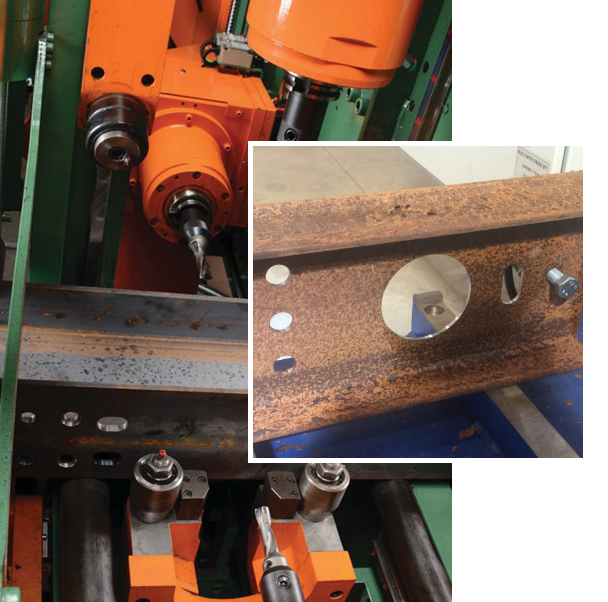

STRUCTURAL STEEL PROCESSING
Peddinghaus XDM-630
High Speed CNC Drill Saw Line
An efficient solution for processing of Universal Beams & Columns, Channels, RHS, SHS, Angles and more. Our Peddinghaus XDM-630 CNC beam line enables us to process structural steel with unparalleled accuracy and efficiency. From cutting to
drilling, milling and marking, we ensure that your structural steel components are
processed to the highest standards, ready to be integrated into your fabrication projects.
Peddi XDM-630 Drilling and Sawing Specifications
- Profile Dimensions
- Profile Thickness
- Saw Angle 0°
- Saw Angle +/- 30°
- Saw Angle +/- 45°
- Saw Angle +/- 60°
- Max. 630mm x 350mm Min. 50mm x 20mm
- Max. 75mm Min. 3mm
- 630mm x 530mm (WxH)
- 550mm x 350mm (WxH)
- 410mm x 350mm (WxH)
- 206mm x 350mm (WxH)
Experience It For Yourself
Talk to us about your requirements or send in your files for a same day quote.
